Tattu 5.0 45Ah 68.4V 18S1P

The Ultimate Power Solution for Heavy-Lift and 100KG Payload Drones.

Tattu 5.0 45000mah 68.4V 18S1P Lipo Smart Battery Pack with ACES Plug

As industrial drones enter a new era of 100L agricultural spraying and 100KG cargo transport, power system stability has surpassed pure capacity as the ultimate driver of operational efficiency and safety. The Tattu 5.0 18S Smart Battery Series is built upon an all-new high-power platform, featuring a complete system-level overhaul—from cell chemistry and thermal architecture to intelligent BMS integration and rapid-charging capabilities. Designed to deliver lower operating temperatures, unwavering power output, and superior reliability under continuous high-load, high-frequency conditions.

3078Wh
Energy Capacity
540A
Continuous discharge cureent
6c
Fast charge rate.
1000+
Cycle life

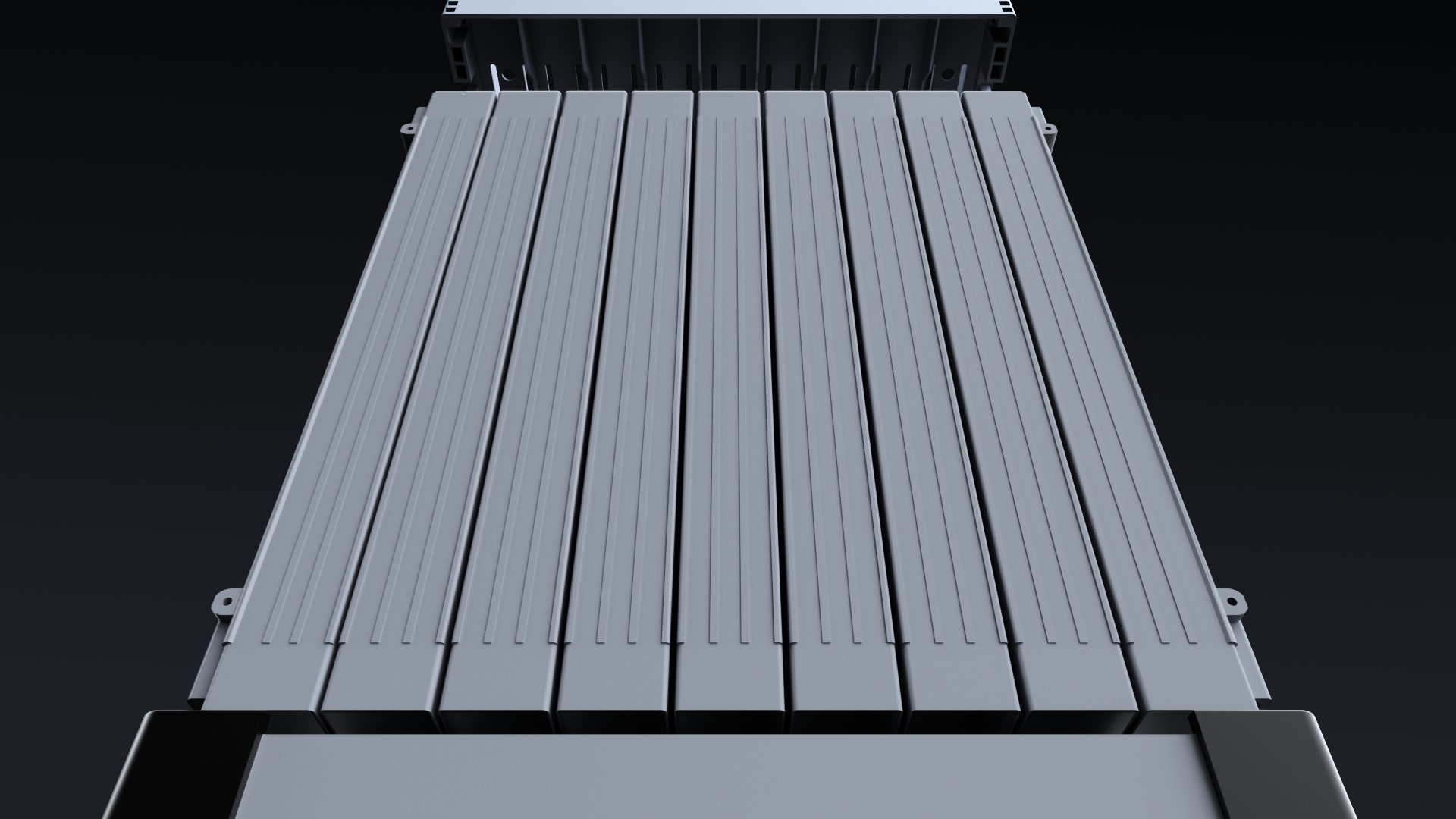

Dual-Tab Cell Design for Lower Heat and Higher Power Output

Dual‑tab cell design shortens current paths and lowers resistance, enabling cooler operation, balanced heat distribution, and stronger high-rate performance.

3078Wh High Energy with 540A Continuous Discharge
Engineered for 100KG payloads, maintaining a rock-solid voltage platform and thermal balance during high-intensity, continuous flight maneuvers.
Rapid 6C Charging with Intelligent Automation
Ultrafast 6C charging delivers up to 220A for a near full recharge in 14 minutes, with intelligent automation ensuring safe, efficient operation.

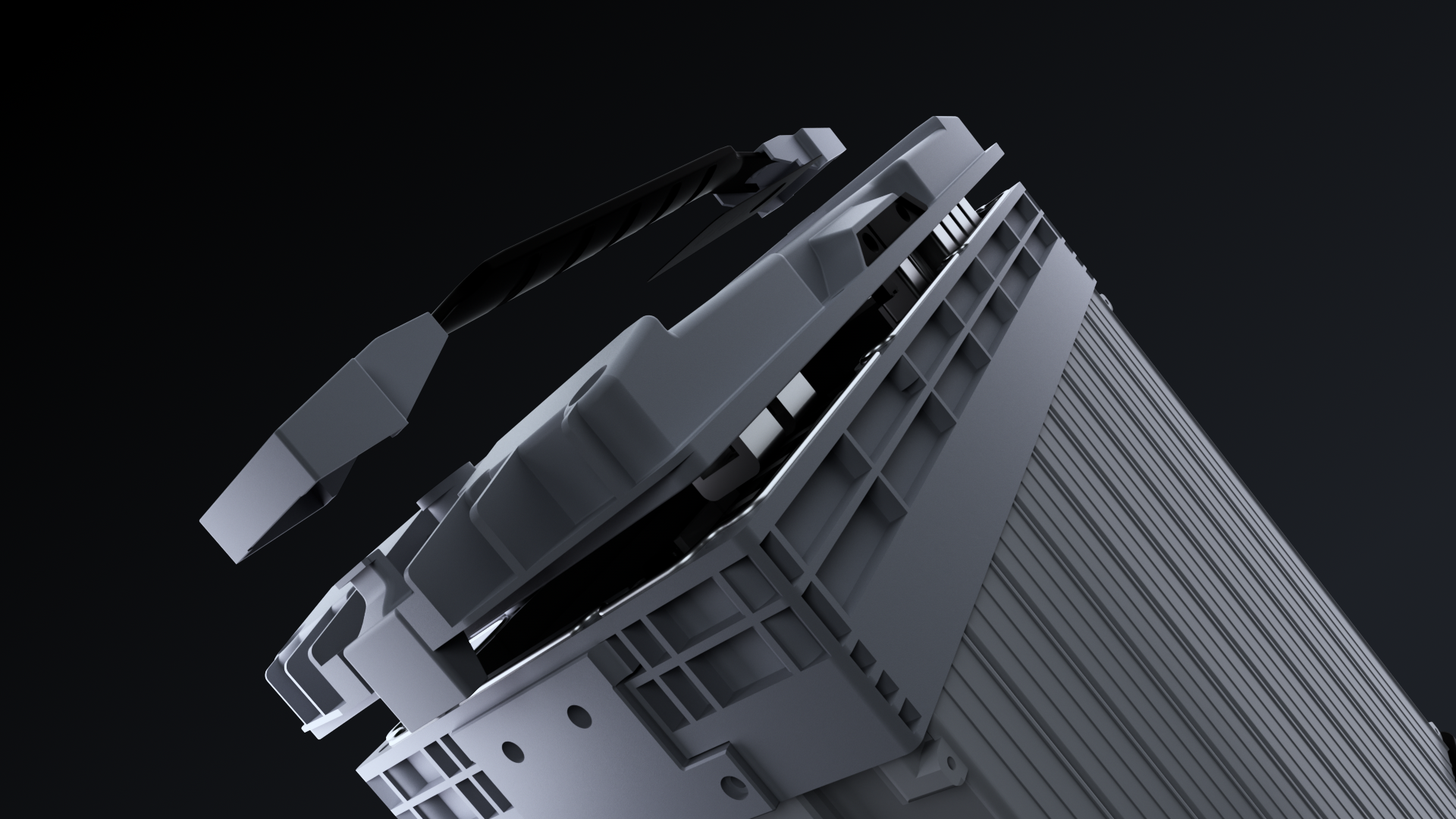

Advanced Thermal Management with Aerospace-Grade Materials

The hollow grille design improves cooling and reduces downtime, while the aluminum-magnesium alloy housing cuts weight by ~30% and maintains high structural strength.

Extended Cycle Life Beyond 1000+ Uses

esigned for durability, the Tattu 5.0 provides long-lasting energy support for agricultural and industrial UAVs, reducing cost per mission and maximizing fleet ROI.

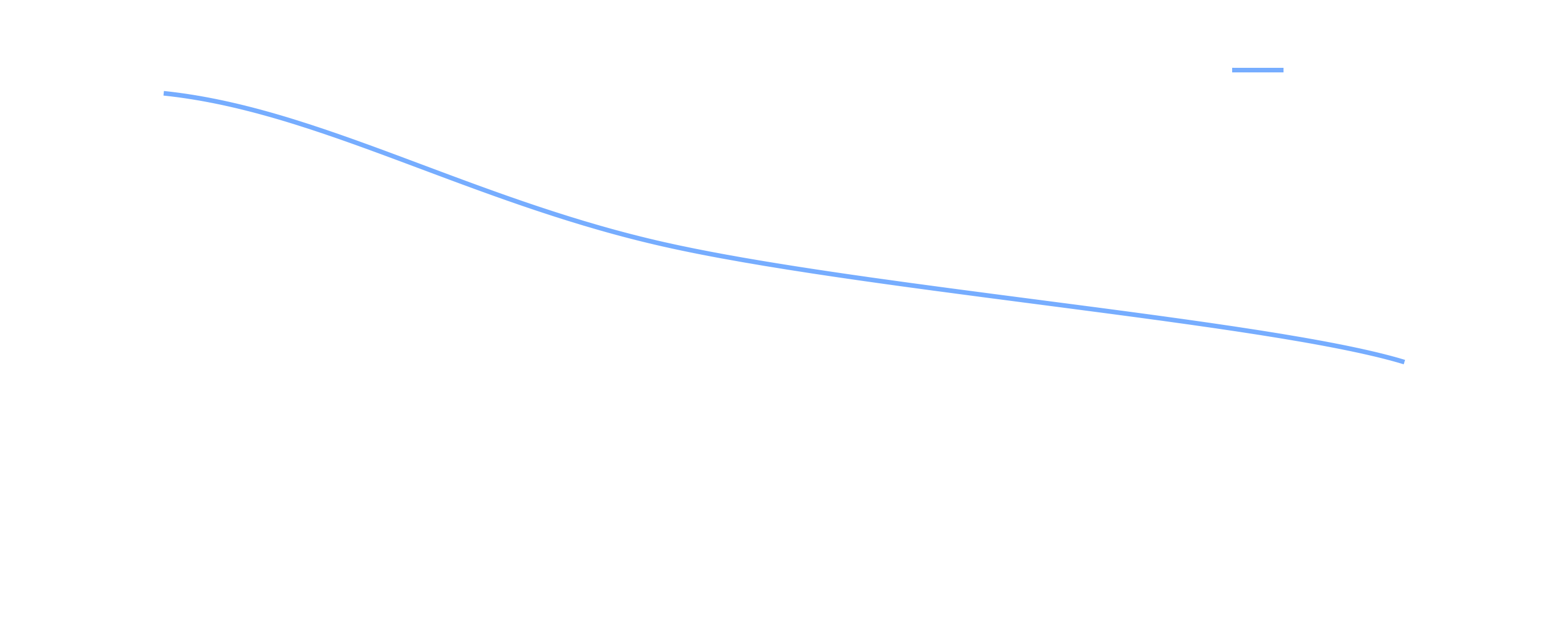

Operating Cycle Capacity
Retention Curve

Advanced Smart BMS for Safer, More Reliable Powe

The Tattu 5.0 BMS combines precise state-of-charge monitoring, active cell management, and redundant safety architecture — fully integrated with leading drone flight controllers via DroneCAN.

Proprietary SOC Algorithm
±3% SOC accuracy with intelligent low-voltage warnings and automatic storage mode.
Automatic Cell Balancing
Enhanced passive balancing current accelerates cell equalization for consistent performance across all cycles.
Dual short-circuit protectio
Dual MOSFET and fuse protection provides fail-safe operation even in single-point failure scenarios.
DroneCAN Protocol
Works seamlessly with ArduPilot, PX4, VK, Brouav, and Jiyi via CAN bus.

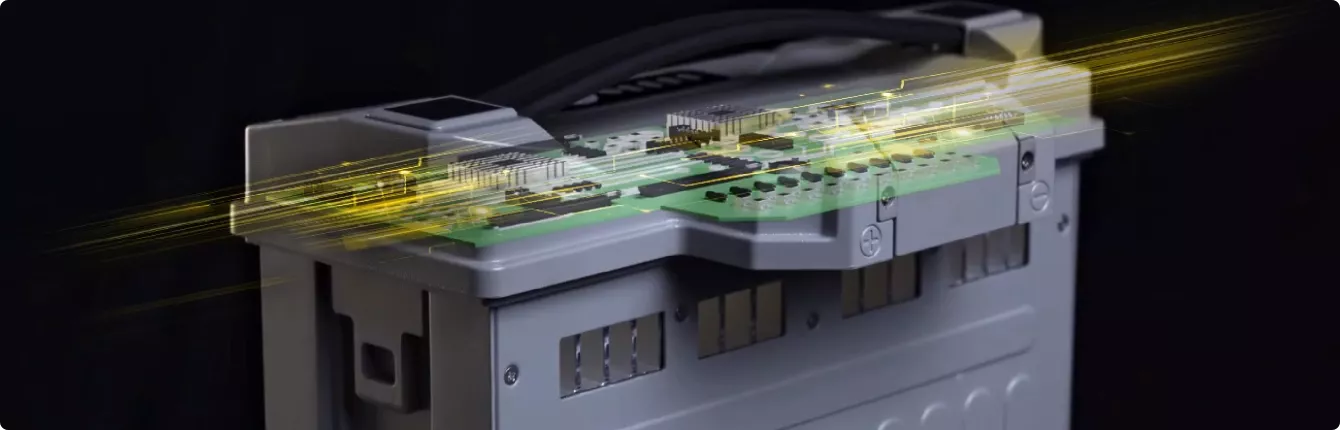

Intelligent Power Architecture for Precision

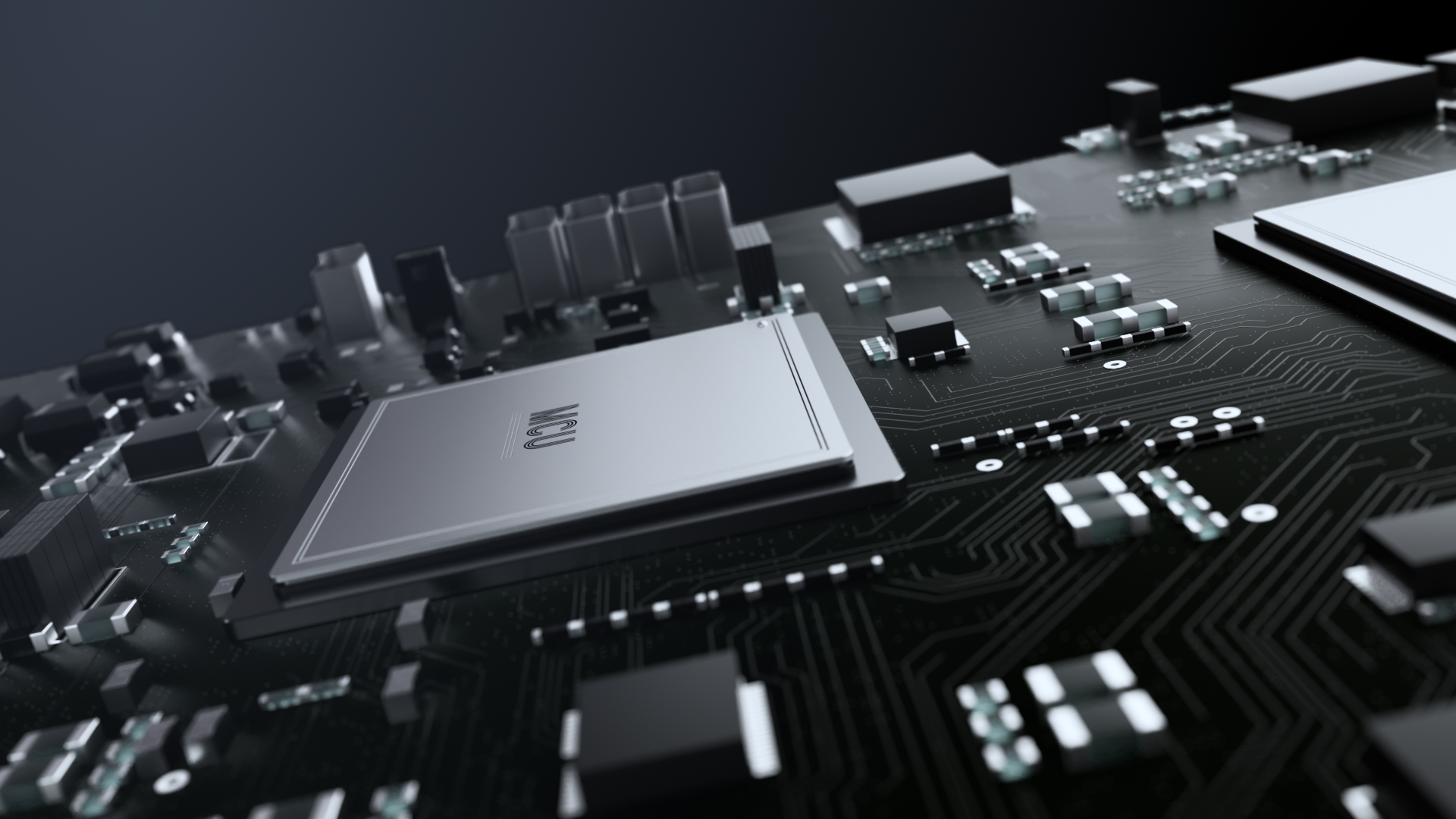

Industrial-Grade MCU

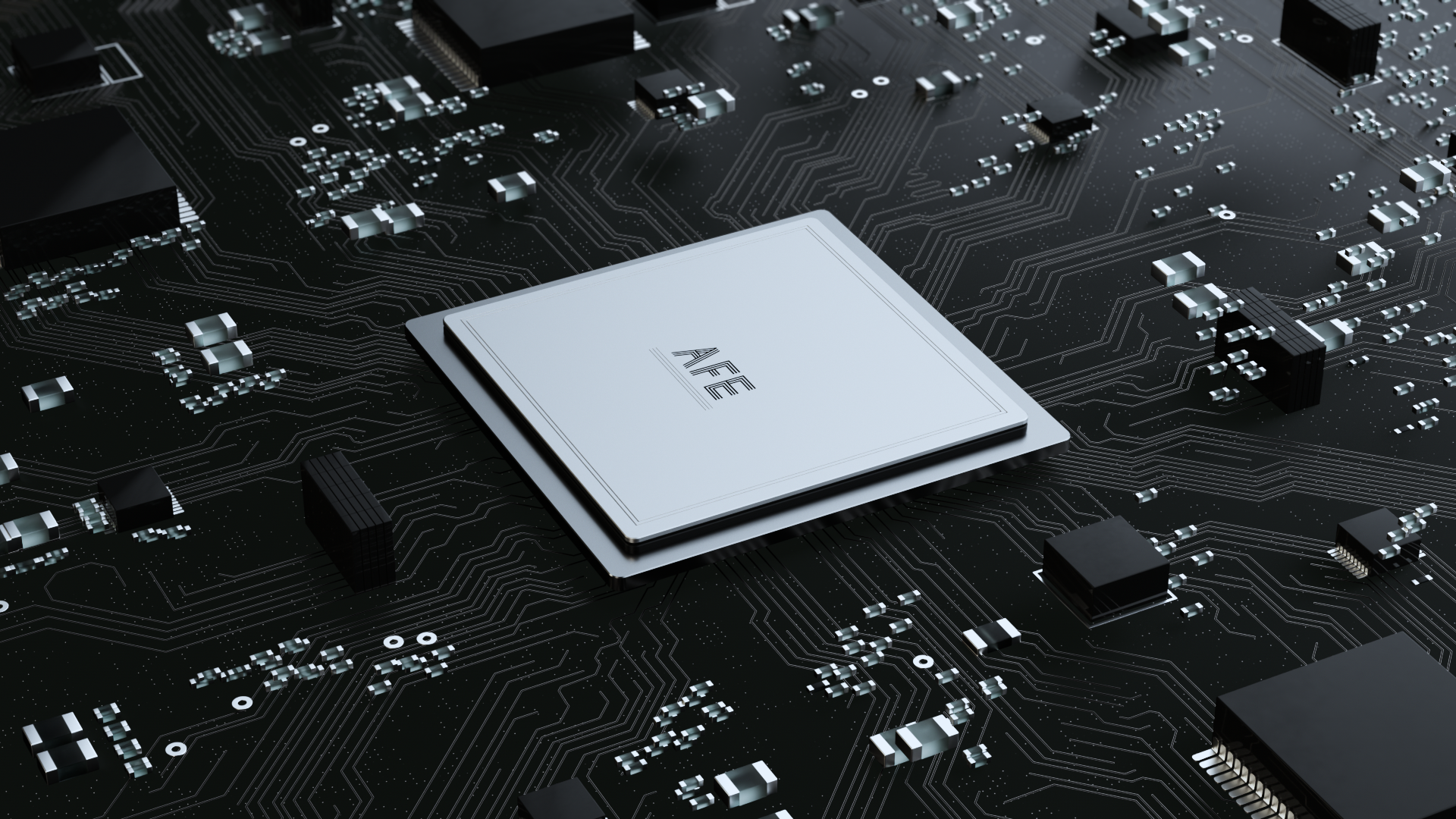

Advanced AFE Chip

Smart Parallel Capability

Low-power MCU reduces static consumption fivefold, enabling up to 2 years of semi-storage without risk of deep discharge.

High-accuracy AFE chip ensures ±3mV voltage precision and reliable data even at -20°C.

Smart parallel operation allows flexible system setups, supporting higher power needs and multi‑battery deployments.

Built Tough. Built Smart.

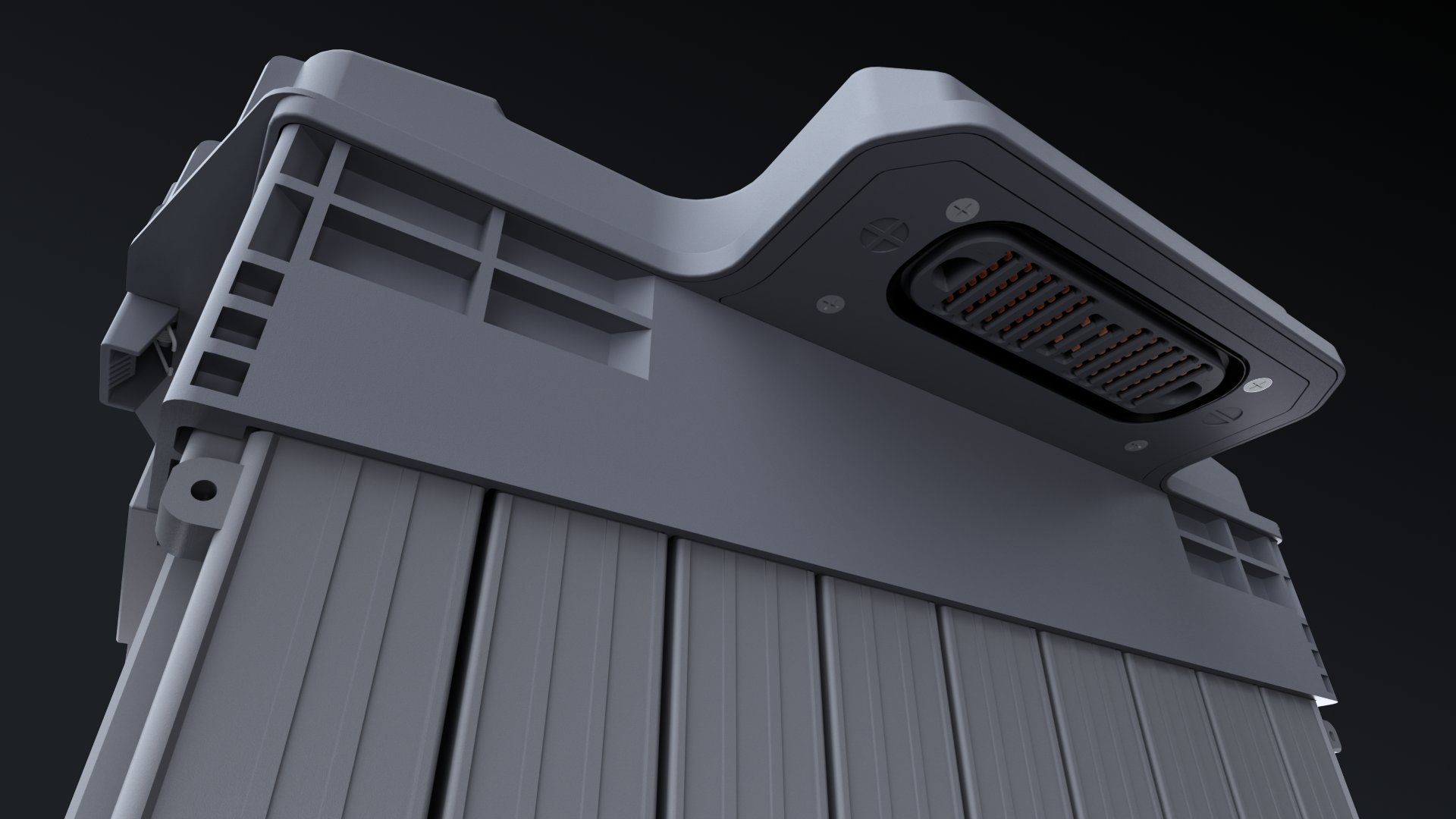

500A Connector

Gold-plated high-power interface reduces resistance for massive power bursts.

IP65 Rating

Full potting process provides industrial-grade waterproof, dustproof, and shockproof protection.

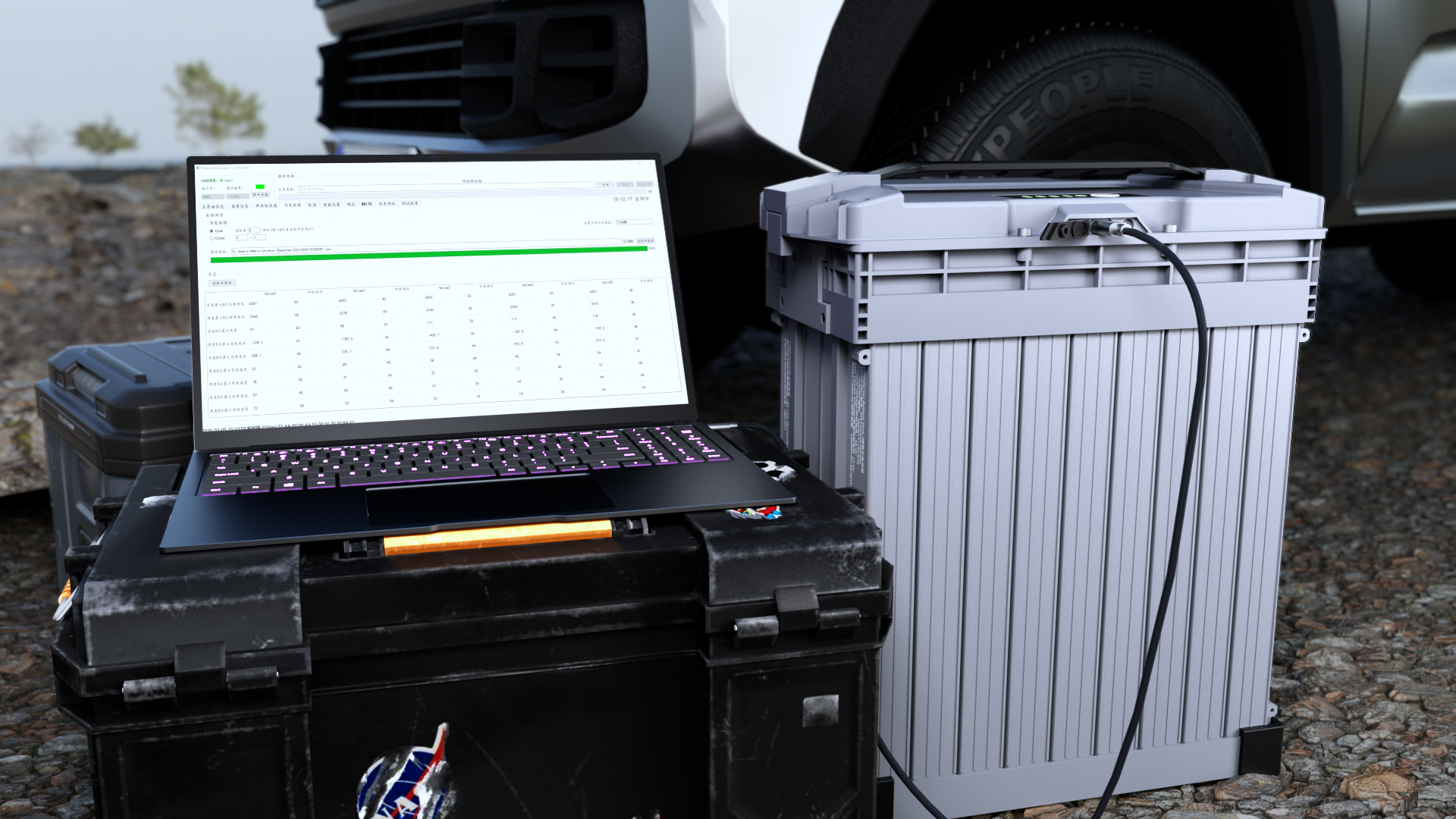

Fast Data Export

Waterproof Type-C port exports 250,000 logs in 8 minutes (11x faster).

Ergonomic Design

Integrated handle and self-locking snap mechanism for rapid field swaps.
