Tattu NEO 5C 60Ah 66.6V 18S2P

High-capacity smart power solution for heavy-payload UAV logistics.

Tattu NEO 60000mah 66.6V 5C 18S2P High Energy Density Smart Battery With QS9S-F Connector

The Tattu NEO 5C 60Ah 66.6V 18S2P Smart Battery is built for heavy-lift drones used in logistics and delivery. It features high-energy-density cells, an all-aluminum case for efficient heat dissipation, and an integrated smart BMS with DroneCAN protocol support. The intelligent battery management system provides real-time monitoring, automatic balancing, and safety alerts, delivering reliable power for logistics and heavy-payload missions.

66.6v
Nominal voltage
3996Wh
Energy capacity
180A
Continuous discharge cureent
500+
Cycle life

High Continuous Power Output

Delivers up to 180A continuous discharge and 300A peak output, supporting
heavy payloads and high-power flight operations.

Lightweight Semi-Solid Innovation
Powered by advanced semi-solid cells, this battery is up to 32.5% lighter than conventional solutions, delivering higher energy density and extended flight endurance.
Fast Charging Efficiency
1C fast charging reduces downtime between flights. Combined with Tattu smart chargers, temperature-adaptive charging optimizes current flow to extend battery life.

One-Touch Parallel Operation

Smart parallel connection scales capacity instantly with a single button press—no manual
balancing or complex wiring required.

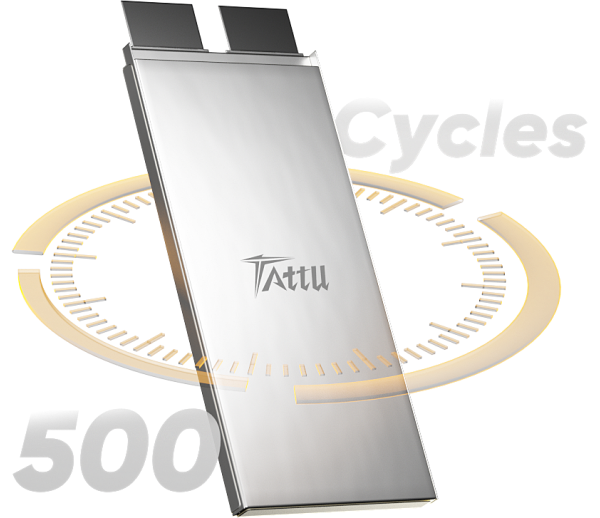

Extended Cycle Life

Premium-grade cells with exceptional consistency and intelligent battery management provide over 500 cycles for longer service life and lower total cost of ownership.

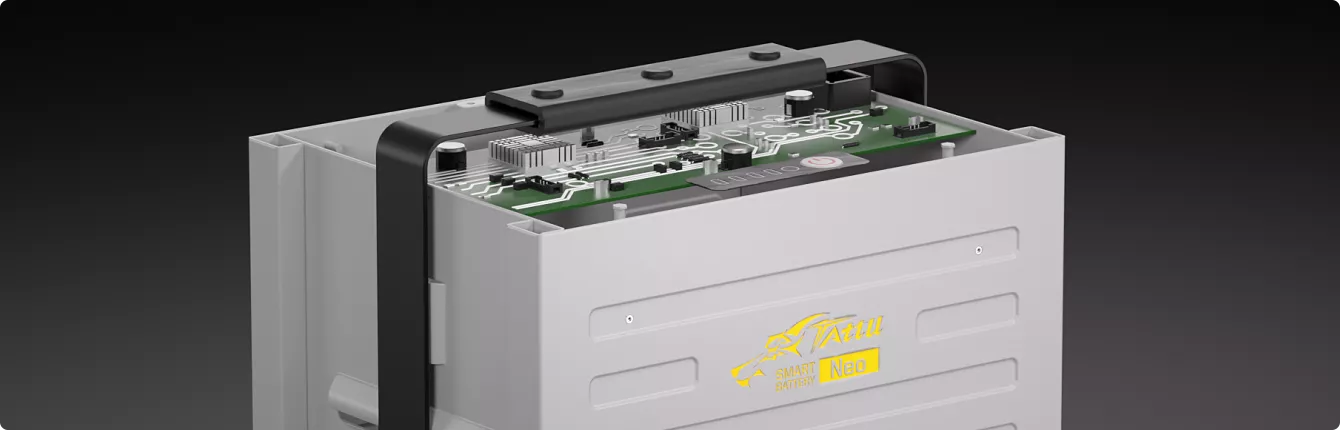

Intelligent BMS Architecture

Advanced BMS technology delivers precision monitoring, automated maintenance, and seamless integration for professional drone operations.

Precision SOC Estimation
Proprietary SOX algorithm provides precise State of Charge estimation for reliable flight planning.
Automatic Cell Balancing
Extends battery lifespan by maintaining optimal cell voltage under specific conditions.
Ultra-Low Power Consumption
Designed for year-round maintenance-free operation, reducing service and upkeep costs.
DroneCAN Communication Support
Integrated communication protocols for seamless flight controller integration and real-time telemetry.

Safe & Easy Operation Design

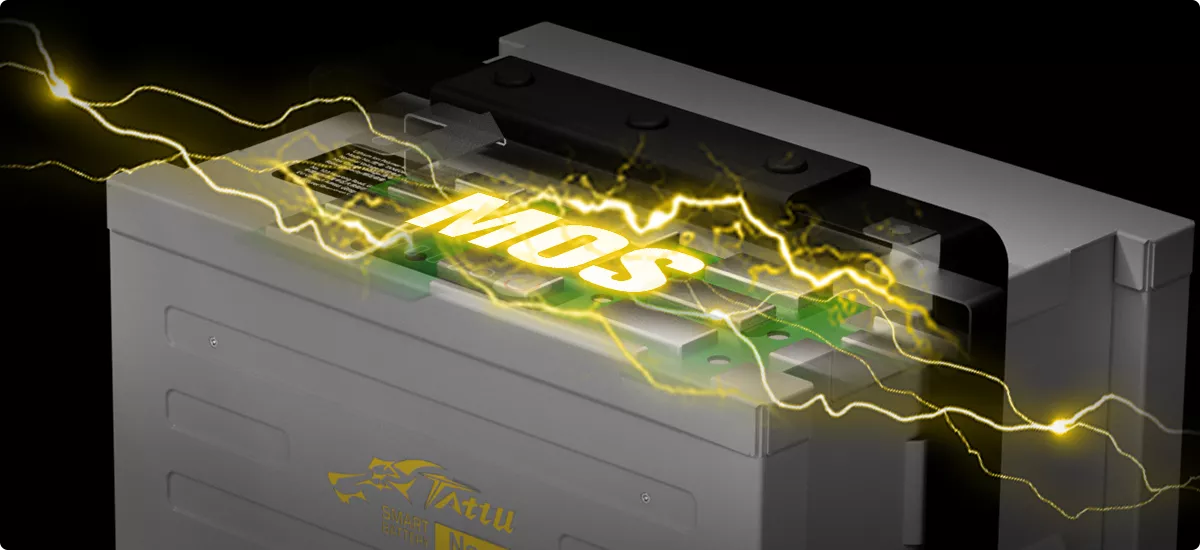

Anti-Spark Protection

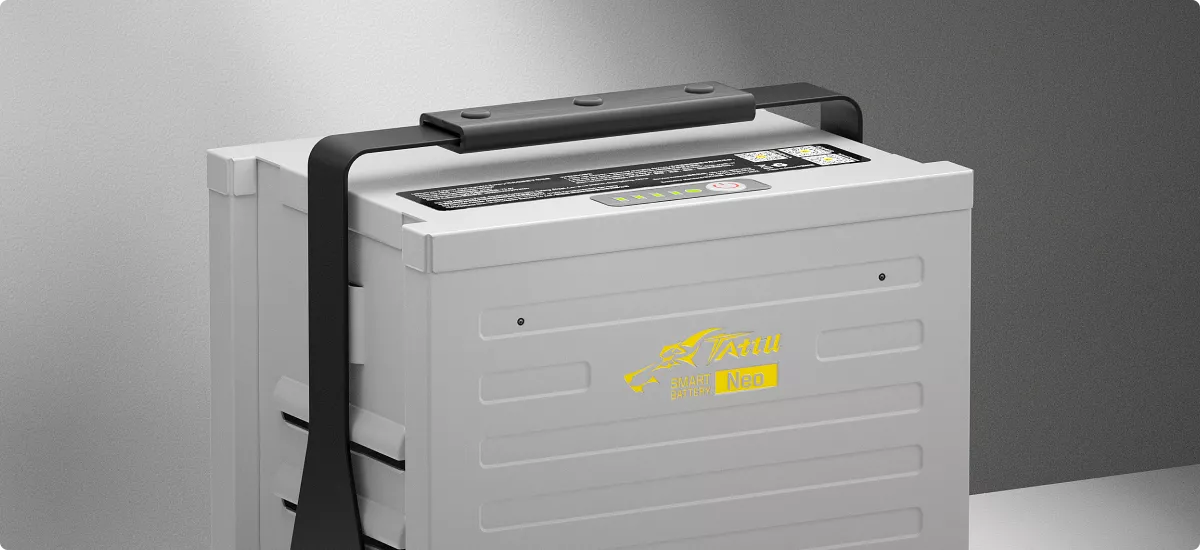

Durable All-Aluminum Housing

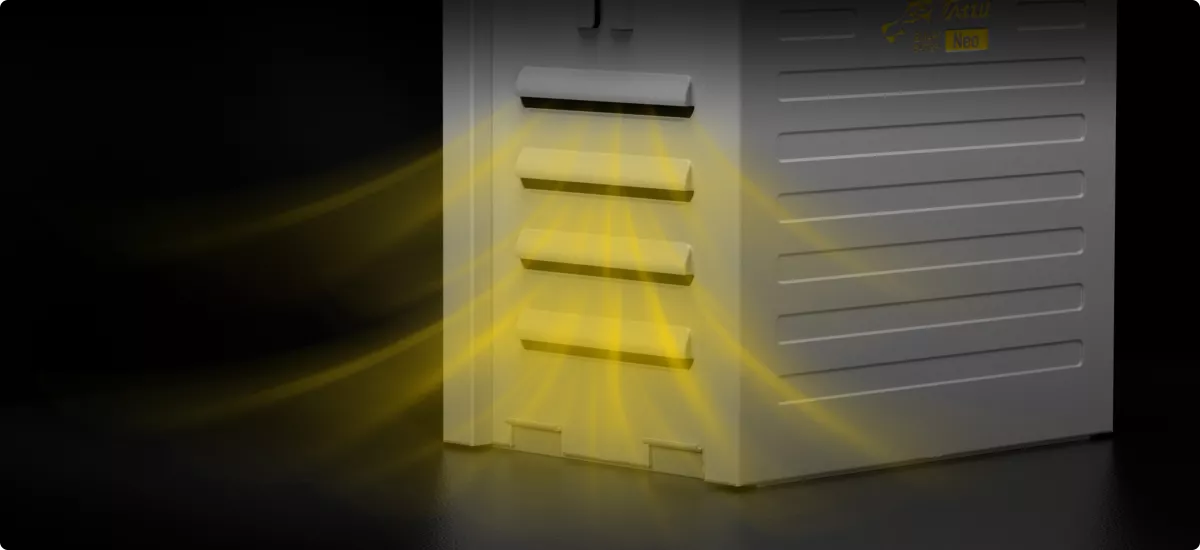

Superior Heat Dissipation

MOSFET safety system with in-place detection prevents electrical hazards during connection.

Rugged all-aluminum casing ensures strength, reliability, and long-lasting protection.

Enhanced thermal management ensures stable performance during high-demand operations.

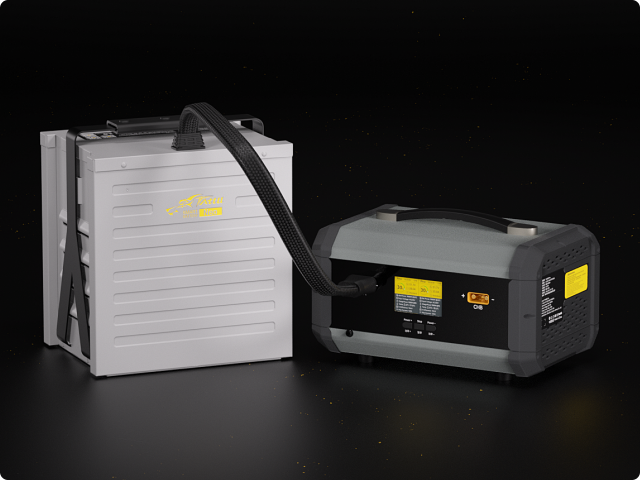

Flexible Charging Ecosystem for
Every Operation

TA9000PLUS Smart Drone Battery Charger

Unmatched Power. Intelligent Efficiency. Professional Reliability.

Learn more

TA7200PRO Smart Drone Battery Charger

High Power. Smart Control. High Efficiency.

Learn more
